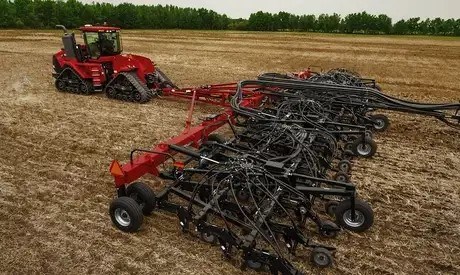

Case IH Flex Hoe 900

New Products / Case IH Products / Planting & Seeding / Flex Hoe Air Drills / Flex Hoe 900

Double tap to zoom



Features

New for 2023

Greater Productivity with New Configurations

New for 2023: Case IH is introducing more configurations and options for your Flex Hoe 900 air drill. A larger 80-foot working width meets market demand to cover a wider area of your field for fewer passes. Redesigned air packs are easy to use, providing an optimized path for seed and fertilizer. And a high-flotation tire package with 340/60R15 radial implement tires improves travel in wetter soils and conditions with less compaction.

Opener

Knife Options

Frame Design

Work More Acres Per Hour

The Flex Hoe air drill is designed to be big in the field and compact in transport. The rugged frame folds quickly to get you in and out of the field faster. Its flexibility enables better ground following for optimal seed placement. And the choice of width options from 27 to 80 ft allow you to work more area with each pass.

Packing System

Versatility to Fit Your Operating Style

The Flex Hoe air drill offers a parallel link packing system on the Flex Hoe 900 or an in-line gang packing system and the optional walking gang option on the 700 model. Compare link options by following the link below.

Press Wheel Options

Consistent Packing with a Choice of Press Wheels

For optimal germination, a variety of press wheels are offered to match your soil types and seeding environment

Optional mud scrapers handle mud buildup in damp or fine clay soils.

Specifications

Seeding Method Shank with sweep or knife
Min Row Spacing in10
Max Row Spacing in12
Seed Supply Air Cart
Frame Sections And Transport Folding Method 3 & 5-section, rear fold
Min Working Width ft-in50ft
Max Working Width ft-in80ft
Min Transport Width ft-in18ft 4in
Max Transport Width ft-in18ft 4in
Min Transport Height ft-in16ft 6in
Max Transport Height ft-in16ft 6in
Min Number Of Furrows 50
Max Number Of Furrows 96
Min Weight lb27592
Max Weight lb44255
Variants Available 4 frame widths; 2 row spacings
Opener Type Spring Trip C-Shank
Depth Gauging System Manual cam adjust on each press wheel arm
Max Seeding Depth in2
Trip Load - Lb (kg) Opener vertical travel +9" (229) to -7" (178)
Fertilizer Delivery Double shoot
Press Wheel Mounting Mounted on opener linkage
Press Wheel Description 4.5" semi-pneumatic
Center Frame Tire 11L-15 FI or 12.5-15 FI
Wing Frame Tire 11L-15 FI or 12.5-15 FI
Number Of Frame Ranks 3
