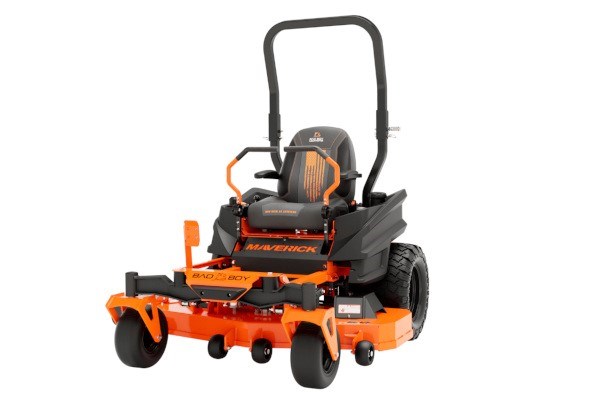

Bad Boy Mowers Kohler Confidant ZT740 747cc

Double tap to zoom



Features

  • Dual Hydro-Gear 3200 Series Integrated Drive Systems
  • Patented EZ-Ride® System
  • Patented Independent Front Suspension
  • I-Beam Front Rails
  • Heavy-Gauge, All-Steel, All-Welded Frame
  • Industry-Leading 3/8˝ Steel Front Forks
  • 7-Gauge All Steel, Formed and Welded Deck with Reinforced Edges
  • PEER, Maintenance-Free Spindles
  • Deck Lift Pedal with Deck Dial Adjustment
  • Seat Lifts for Easy Maintenance and Cleaning
  • Adjustable Steering Arms
  • Electric PTO
  • Comfort Seat



COMMERCIAL-GRADE FOR THE HOMEOWNER

Built and outfitted commercial-grade tough, but priced perfect for the demanding landowner, the Maverick features strong 2˝ x 2˝ all steel rail frame for its backbone. Industry-leading 1/2˝ steel front forks are a Bad Boy construction hallmark as is the solid steel, all-welded and formed deck. Formed from tough 7-gauge steel with reinforced edges, we’ve improved the baffling system to maximize greater grass lift for a cleaner cut.

SO COMFORTABLE YOU WON'T WANT TO STOP

From the comfort of the premium seat, you’ll have smoother steering and tighter, more precise control with our steering dampening system, giving you better responsiveness and maneuverability. The adjustable handles and front-to-back seat adjustments makes the Maverick a perfect fit for any operator. With our adjustable, left or right side deck lift pedal, you can easily dial in the perfect deck height for a perfect cut time and time again.

Specifications

Engine Options
Kohler 4800/5400/6000 - 747cc, 25hp Air-Cooled Confidant ZT740
Dimensions
Cutting Width 4800 - 48"
5400 - 54"
6000 - 60"
Weight 4800 - 957 lbs.
5400 - 1,005 lbs.
6000 - 1,031 lbs.
Overall Height/Length 47"/80"
Chute Up/Chute Down Width 4800 - 54"/61"
5400 - 58"/67"
6000 - 64"/73"
Features
Suspension E-Z Ride® Patented Compression Rear Suspension with Independent Front Suspension Rails
Transmission 3200 Hydro-Gear® 10cc Integrated Transaxle
Deck Thickness 3/16" Thick Solid Steel
Cutting Height 1.5"-4.5" With Deck Height Control System
Lift and Height Adjustment Foot-Assist Manual Lift With Dial-Style Height Adjustment. Optional Electric Lift.
Rear Tires/Front Tires 4800 - 23x8.5-12 Turf / 13x6.5-6 Smooth
5400/6000 - 23x11-12 Turf / 13x6.5-6 Smooth
Fuel 6.5 Gallons; Unleaded Gasoline
Ground Speed (Forward) Up To 9 mph
